Mk7 GTI Camshaft Adjuster and Sensor

This page details some parts that I replaced related to the Camshaft Position Sensor and Adjuster.

In my case, the first sign that something was off was the engine becoming louder at idle.

Later a CEL would pop up reporting an issue with the camshaft position sensor that was accompanied by the engine running rougher.

I was logging the car at the time the issue threw the CEL and it was apparent something was off since both the intake and exhaust cams reported position began to be off from normal operation:

Rather than replace parts piecemeal to determine what was faulty I decided to replace the sensor identified as faulty by VCDS and also the Camshaft Adjuster Magnets and the Camshaft Adjuster Valves.

Part Number: 04C-907-601-K

Number: 2

Tighten Bolt: 9 Nm

Used to locate the position of the valves.

**Engine Variable Valve Timing (Vvt) Solenoid**

Part Number: 06L-109-259-D

Replaces: 06L-109-259-A

Number: 2

Also called: Camshaft Adjuster Magnet

Also called a VVT solenoid for short. Pressurizes the oil whose movement activates the valve timing adjustment mechanism.

**Engine Variable Valve Timing (VVT) Oil Control Valve**

Part Number: 06L-109-257-F (2015 MY)

Part Number: 06K-109-257-H (Later MY)

Number: 2

Tighten to 35 Nm, Left Thread

Also called: Camshaft Adjuster Valve, Spool Valve

Part Number: WHT-007-212-B

Number: 2

Also called: Sealing Ring

Part Number: LCB153SCH

Schwaben Camshaft Adjusting Socket

Camshaft Adjustment Related Videos

The following videos helped me become familiar with the issue when the camshaft adjustment is off and potential solutions.

Anonymous

March 28, 2024 at 06:50

Thankyou, great information, I’m sure it may happen to the R engines too?

Jeff
March 28, 2024 at 11:23

Yes, I saw a video from someone with an R that also had a similar problem to deal with.

Loading...

Nick

April 8, 2024 at 16:26

Having this problem on my R. Did you replace the screws holding in the VVT solenoid?

Jeff
April 8, 2024 at 16:37

I did not.

Loading...

Vincent

June 23, 2024 at 00:43

Thank you, would you please upload the pictures of the engine compartment, I’m finding it difficult locating the cam position sensor.

Jeffrey Jones
June 23, 2024 at 16:13

Yes, I’ve added another picture.

Loading...

July 2, 2024 at 19:29

Jeff: How did you get that Exhaust Cam Pos Sensor out? It’s tight right there…

Jeffrey Jones
July 2, 2024 at 22:25

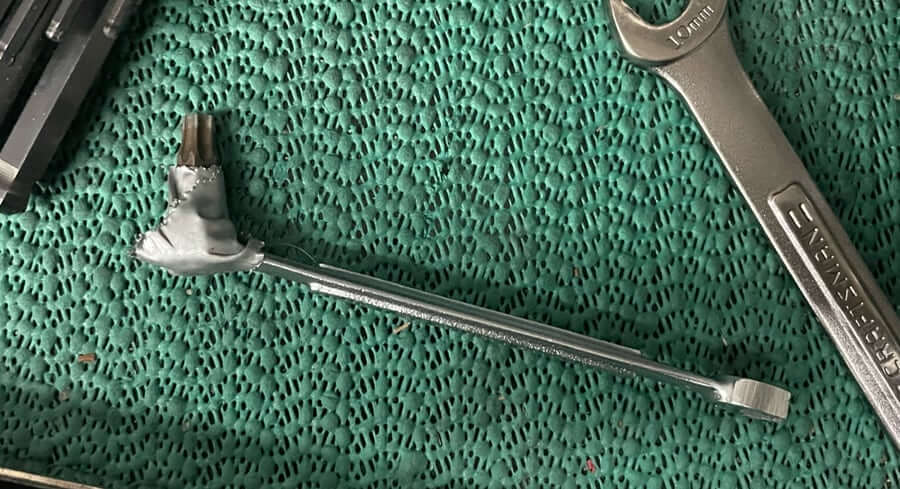

I have a short torx bit that goes into a screwdriver tool. I use that in a small box wrench to loosen the bolt, then remove it by hand.
