M720 Turbo with M520 Tune

Background:

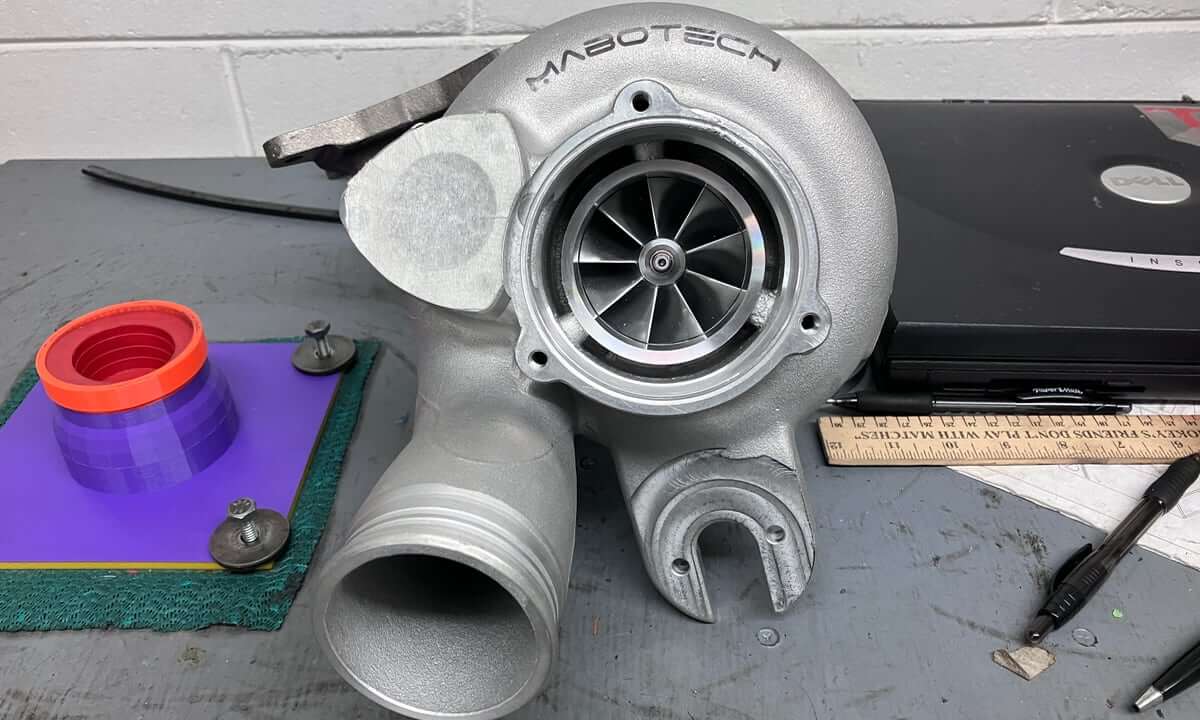

The Mabotech M720 is a prototype turbocharger that has been installed to record performance data.

Mabotech M720 Turbocharger
Mabotech M720 Turbocharger

This post compares data logged with the M720 turbo with that logged using the Mabotech M520 turbocharger. Significantly, the ECU tune has not been updated for the M720 turbocharger, which is larger than the M520.

Test Process:

The data is recorded during a full-throttle fourth-gear pull, starting around 2,000 RPM and concluding at around 6,500 RPM.

Two pulls are made with each turbocharger, and the measurements are averaged.

Test Results:

In the following charts, the M720 results are shown using red lines, and the M520 results using green lines.

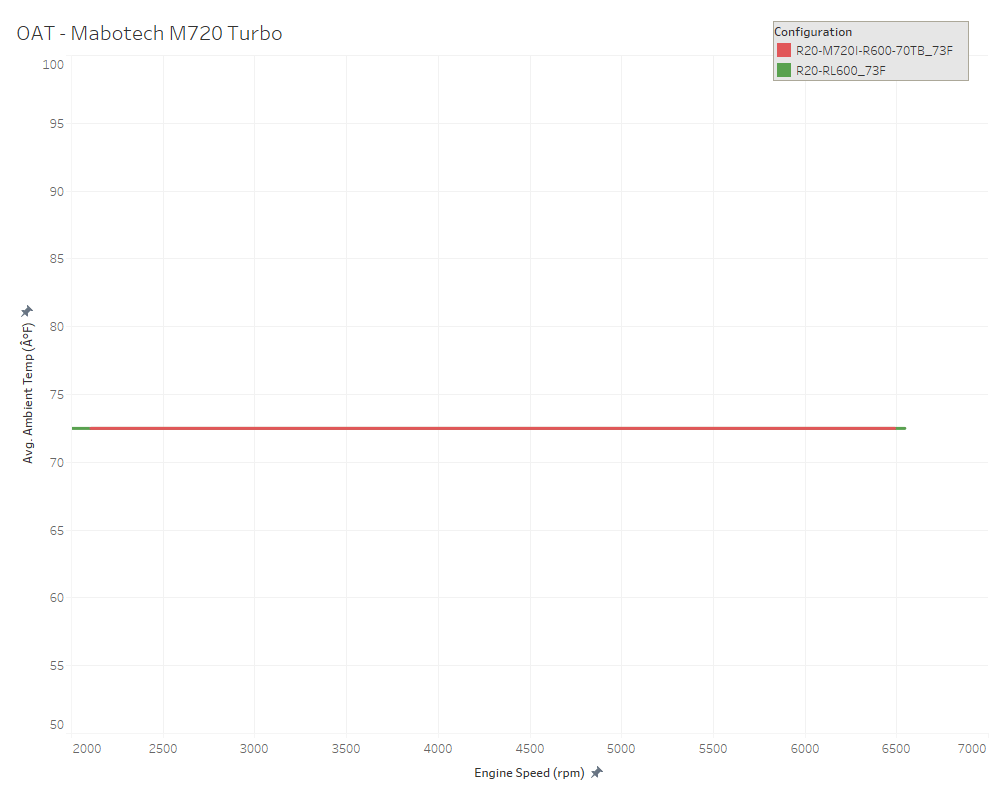

The outside temperature during the data collection for each turbo was unchanged.

M720 vs. M520 - OAT
M720 vs. M520 – OAT

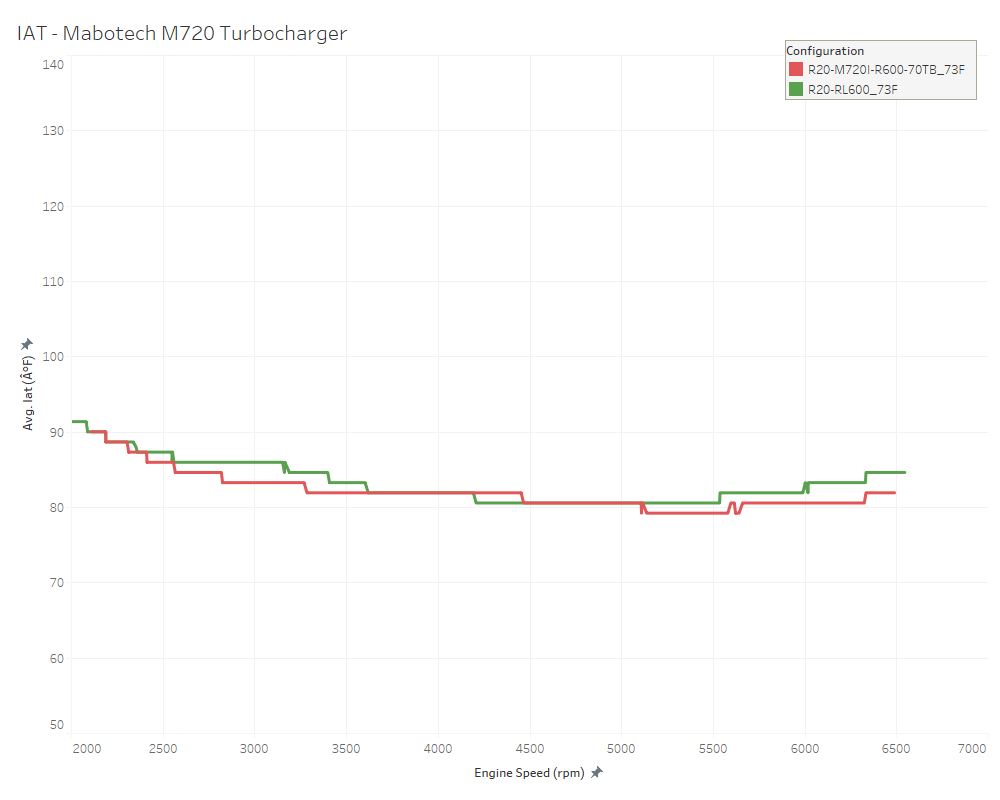

The intake air temperature is nearly the same.

M720 vs. M520 - IAT
M720 vs. M520 – IAT

Note: This is an interesting outcome, considering the potential effect of compressor size on intake air temperature. This temperature is measured after the intercooler has contributed to cooling the air, and it likely dwarfs any impact that differences in compressor efficiency have on the intake air temperature.

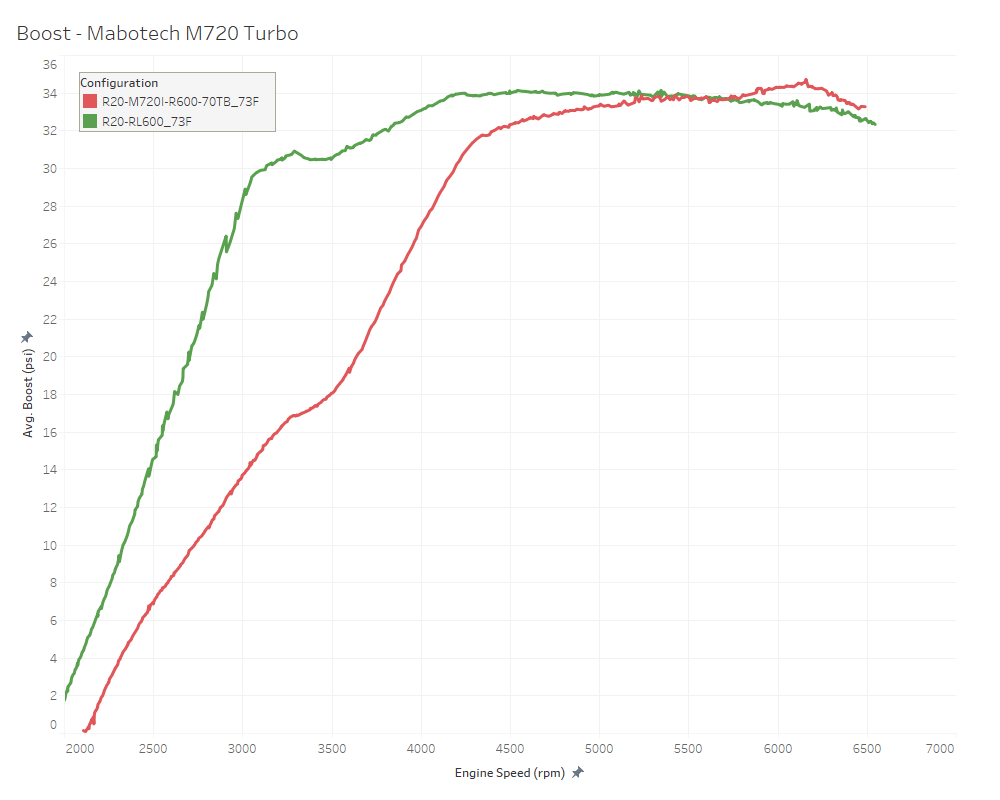

The larger M720 builds boost more slowly than the M520 and holds a slightly higher pressure past 5,800 RPM.

M720 vs. M520 - Boost
M720 vs. M520 – Boost

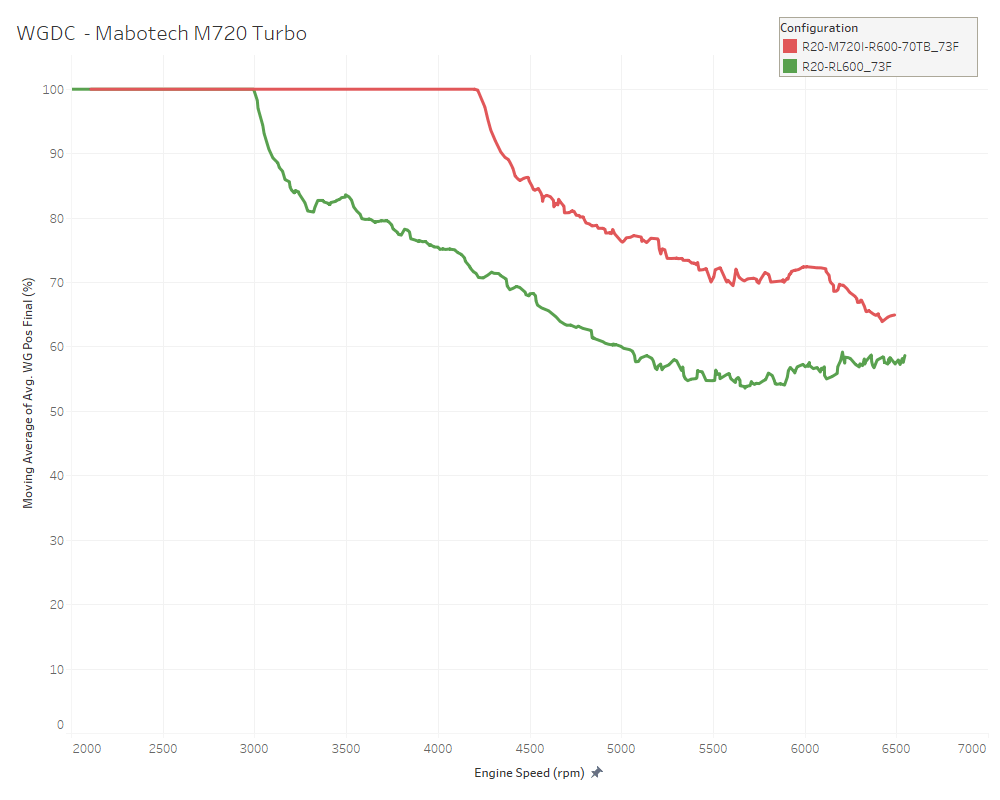

The M720 wastegate is higher than the M520, a finding that was discussed in the first drive post.

M720 vs. M520 - WGDC
M720 vs. M520 – WGDC

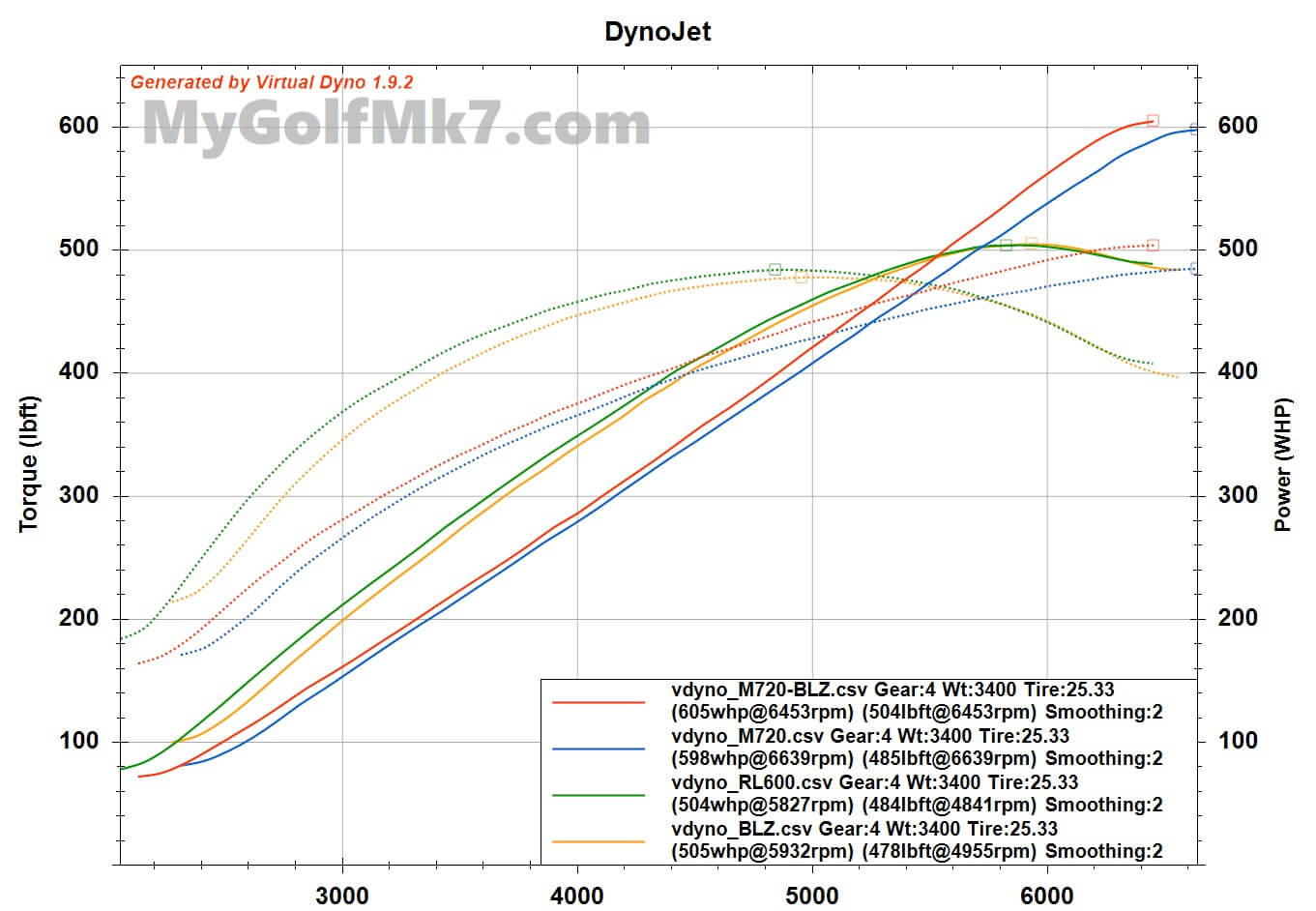

The vehicle acceleration data, processed using Virtual Dyno, shows a substantial jump in peak wheel horsepower.

M720 vs. M520 - Virtual Dyno WHP & WTQ
M720 vs. M520 – Virtual Dyno WHP & WTQ

The ~100 whp increase is greater than I was expecting, considering both turbos are operating at approximately the same boost pressure.

PropertyM520M720
Peak WHP – 1504605
Peak WHP – 2505598
Peak WTQ – 1484504
Peak WTQ – 2478485
Virtual Dyno Summary

Conclusions:

A Mabotech prototype turbocharger was compared with a Mabotech M520 turbocharger, where both turbos operate using the same M520 ECU tune.

The larger M720 generated a similar boost curve to the M520 while making approximately 100 whp more.

References:
