Background:
I saw this advertisement from ARM Motorsports for their charge pipes that contains some impressive claims, if they are true.

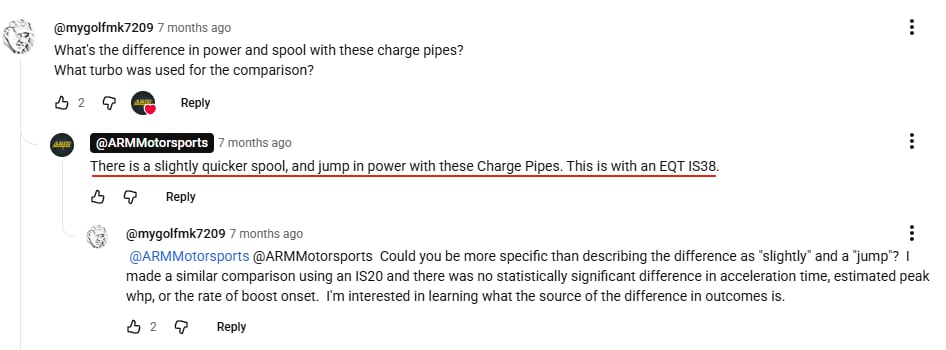

When I asked for more information, ARM Motorsports provided a vague reference to “quicker spool” and a “jump in power“. My question seeking more specificity was not answered – not a good sign.
Claims:
The product supposedly addresses issues with the stock GTI charge pipes and is a “must-have” upgrade for Mk7 owners “looking to take their build to the next level.”
Recapping some of the claims:
The factory Volkswagen charge pipe is restrictive, made from plastic, and cutting off power to your engine. Our charge pipe is fully aluminum with wrinkled black coating and will unlesash the full potential of your turbo.
ARM Motorsport Advertisement
Previously, I made a post detailing all the supposedly restrictive parts the Mk7 GTI comes equipped with from the factory. [Restrictive parts post].
Specific performance benefits of the ARM Motorsports charge pipes are:
- Increases airflow
- Results in faster turbo spool
- Leading to more power
Test Process:

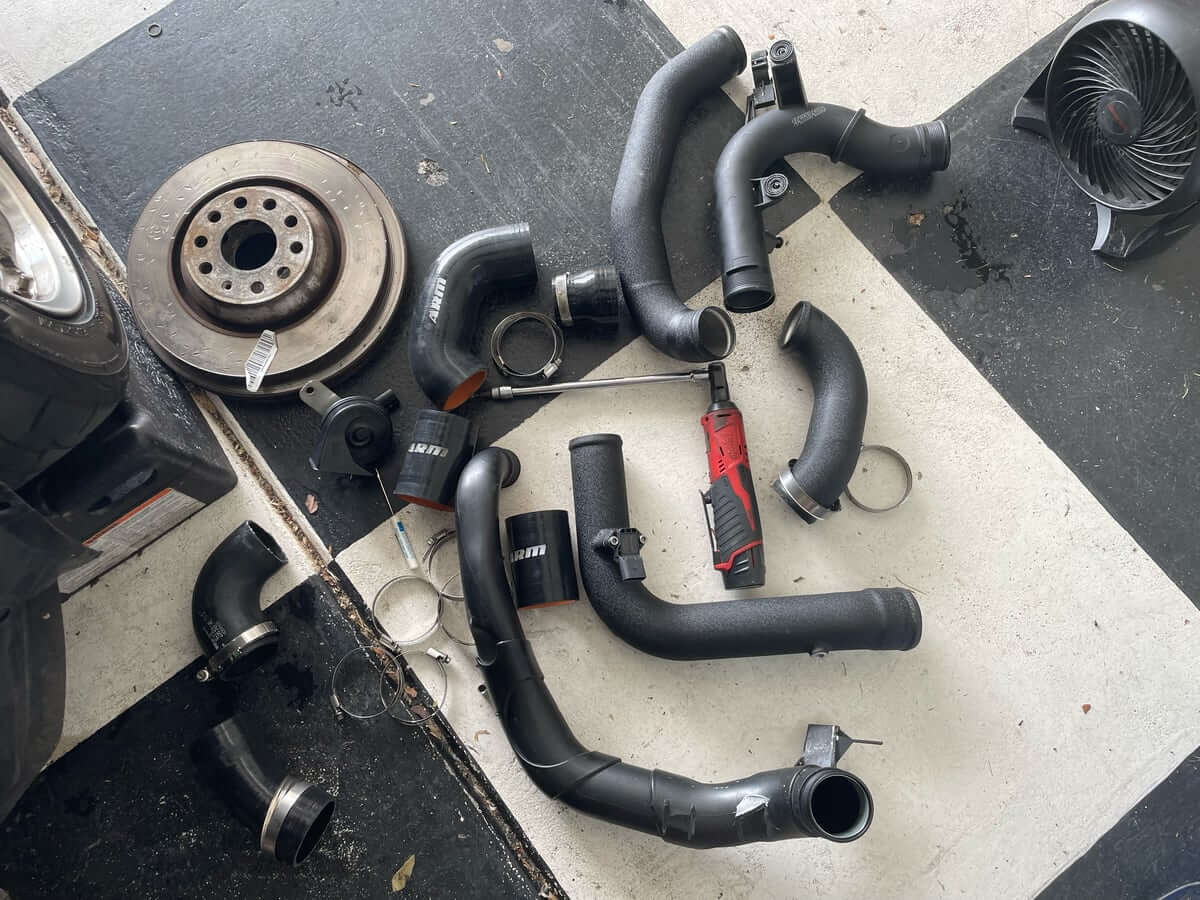

In order to test the claims made by ARM Motorsports, I performed a series of ten (10) full-throttle third-gear pulls using the stock Mk7 charge pipes, and then the ARM Motorsports charge pipes.
My Mk7 GTI is currently outfitted with a Shuenk IS48 turbocharger, running on a 93-octane Russell Road and Racing ECU tune.
Each pull began at approximately 2,000 RPM and concluded at approximately 6,500 RPM. During the pull, engine and vehicle performance data were recorded for post-test analysis utilizing SimosTools and a RaceBox.
Test Results:

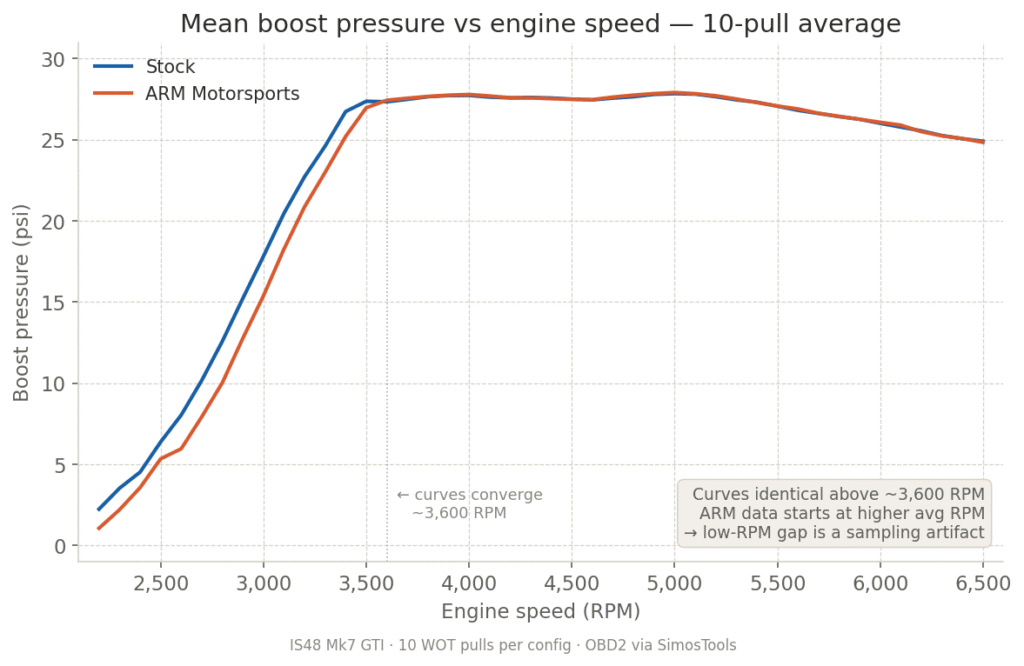

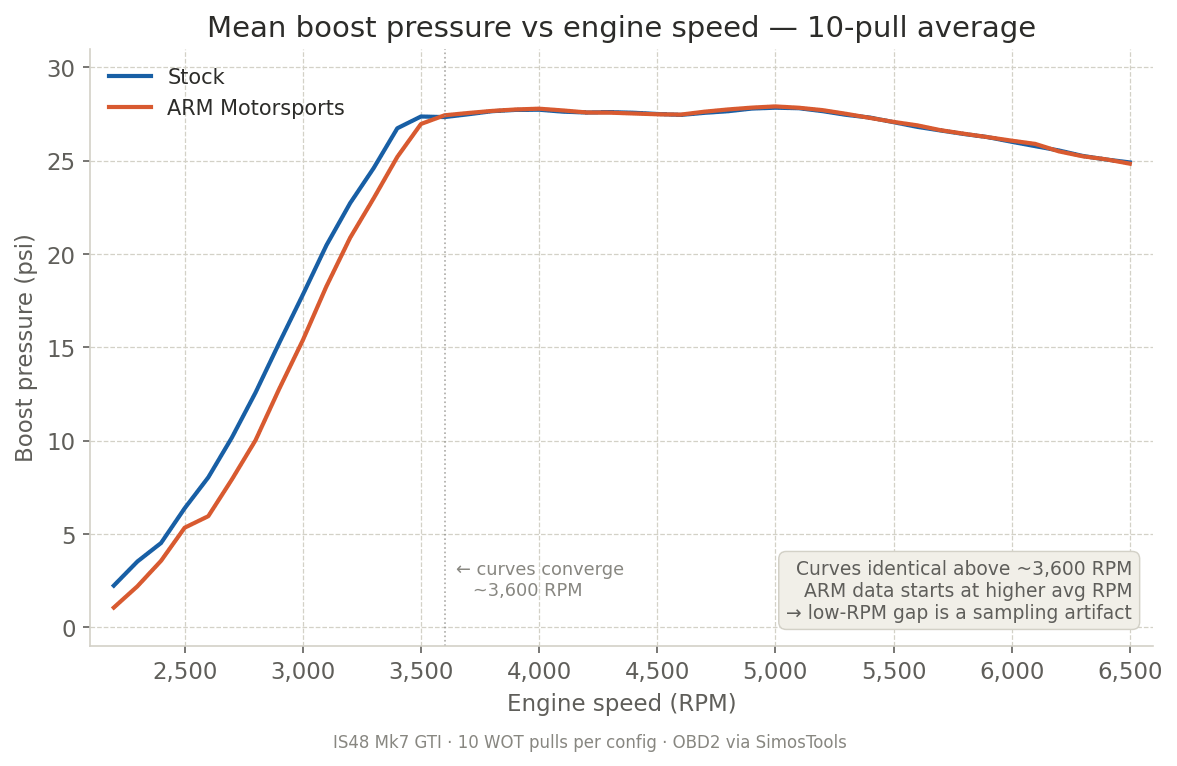

Peak boost and mean boost in the pull window are within 0.13% of each other. The RPM curves converge completely by ~3,600 RPM and track identically through the power band.
The right-shifted boost-onset curve observed in the ARM spool region is due to the ARM pulls starting at an average speed ~3.5 mph higher, not to a part impact on boost onset.

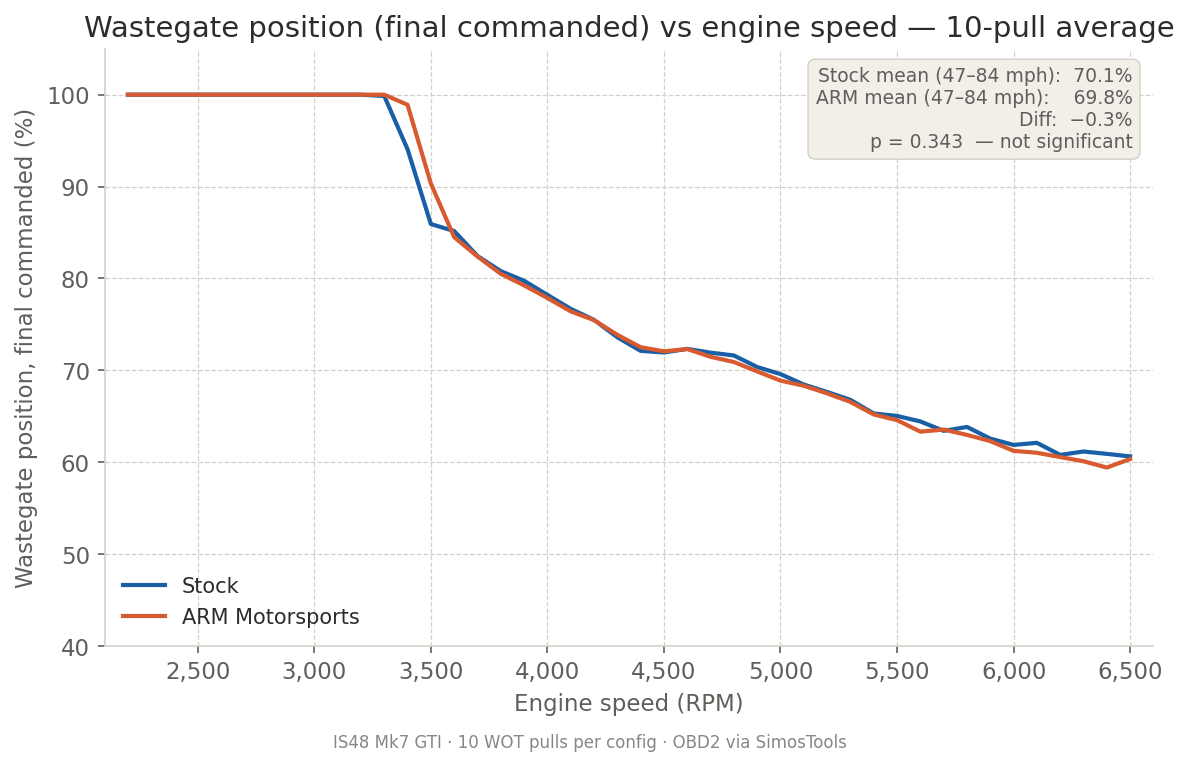

Wastegate Duty Cycle – The two curves are essentially superimposed across the entire RPM range.
This matters for the vendor claim evaluation because if the stock pipe were restrictive, you would expect the ECU to compensate by commanding a more closed wastegate position on the stock pipe to maintain target boost against increased backpressure.
The stock charge pipe isn’t creating an increased pressure drop that the turbo needs to overcome.

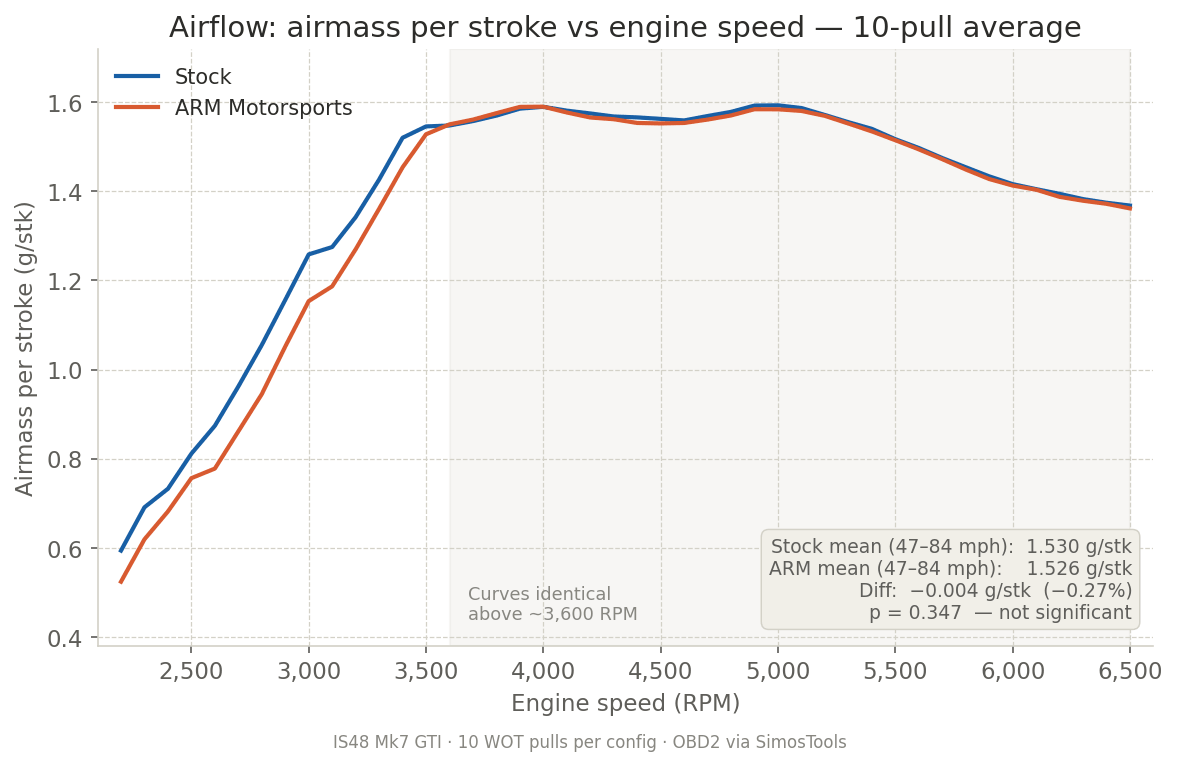

Airflow (calculated airmass per stroke) — Virtually identical across the power band. The stock GTI charge piping is not restricting airflow compared with the ARM Motorsports charge pipes.

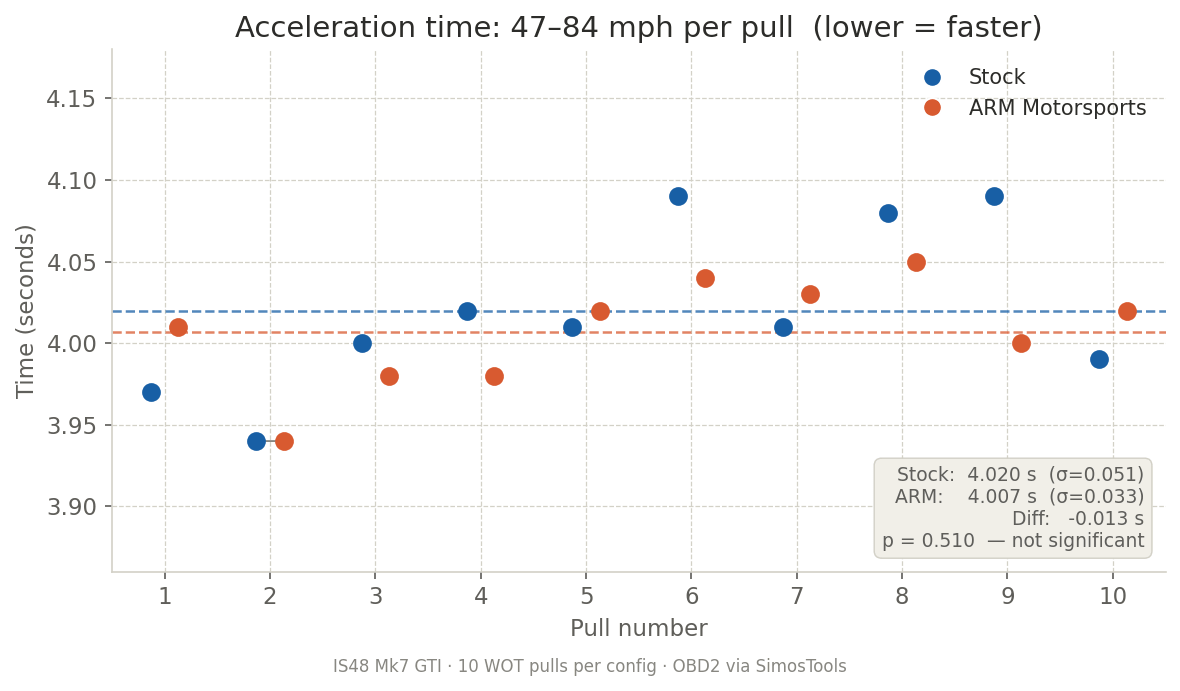

Acceleration time (47–84 mph) — Stock averaged 4.020 s, ARM averaged 4.007 s. This 13 millisecond difference is statistically indistinguishable from noise.

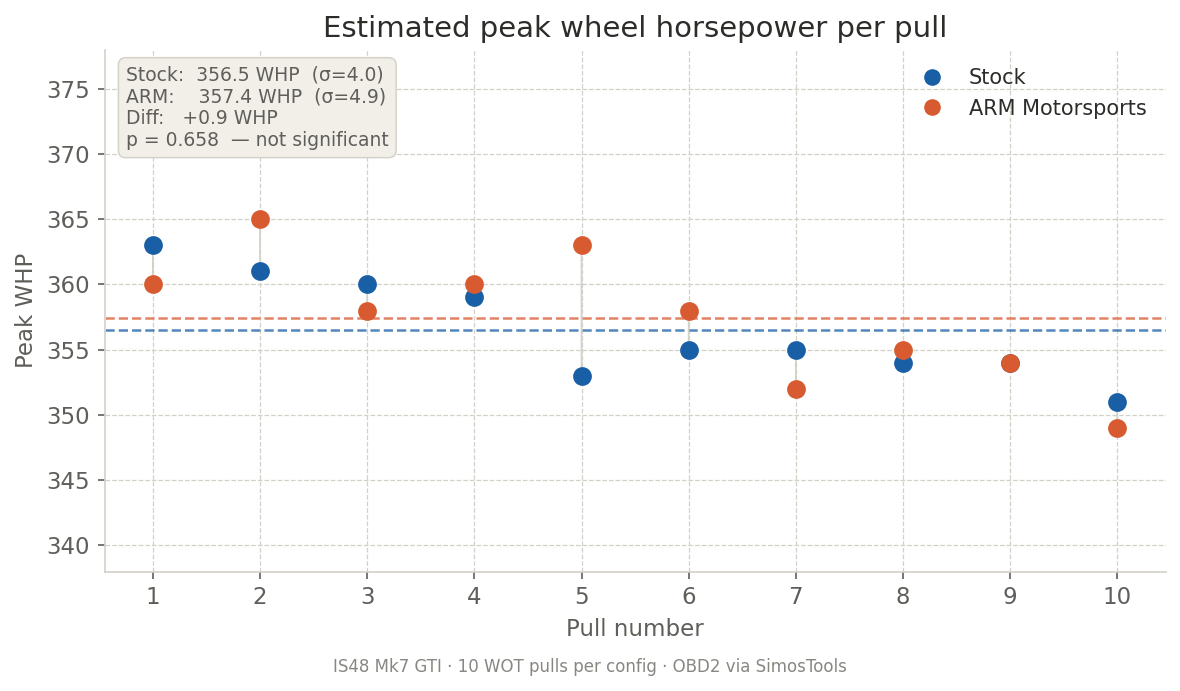

Wheel horsepower — Stock averaged 356.5 WHP, ARM averaged 357.4 WHP. The 0.9 WHP gap is within pull-to-pull variation. No significant difference.

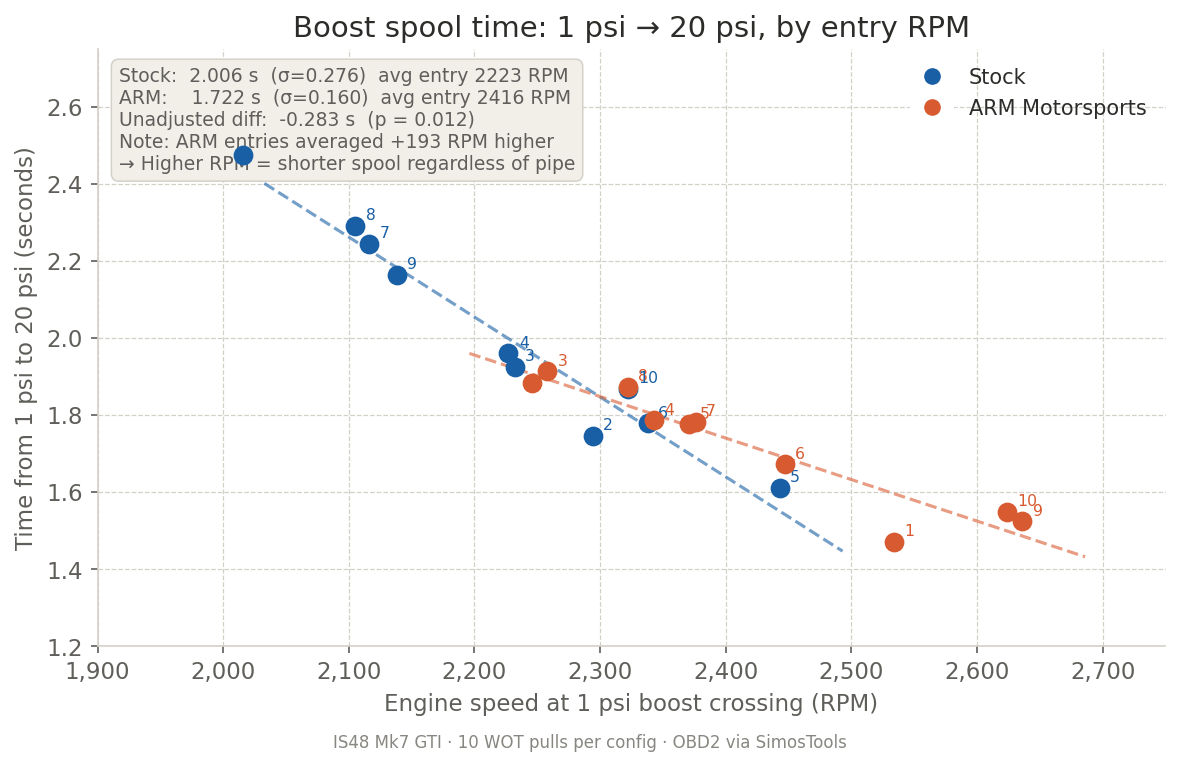

The boost-onset chart clearly illustrates the effect of entry RPM. ARM pulls entered the spool event at an average of 2,416 RPM, vs. 2,223 RPM for stock — a 193-RPM difference.
Since spool time is strongly correlated with entry RPM regardless of which charge pipe is installed, the apparent spool-time advantage for ARM evaporates once accounting for where on the RPM range each pull started.
In the 2200-2400 RPM overlap, it is clear that the two products performed similarly.
Conclusions:
Reviewing the vendor claims for the product and the evidence recorded:
“Factory charge pipe is restrictive and cutting off power“
Peak boost, acceleration time, and WHP are statistically identical across all 10 matched pulls. No measurable restriction was found.
“Increases airflow“
ECU-measured airmass is 0.27% lower with the ARM pipe. No airflow increase detected.
“Results in faster turbo spool“
Spool-time differences are confounded by differing pull starting speeds. When compared at equivalent RPM, no spool benefit is verifiable.
“Leading to more power“
WHP difference: +0.9 WHP. 47–84 mph time difference: −0.013 seconds. No power gain was demonstrated.
“A must-have upgrade“
No performance metric improved by a statistically meaningful margin. The stock pipe is not a performance bottleneck on an IS48-equipped Mk7 GTI at these boost levels.
Not one of the five vendor claims is supported by the evidence. The stock plastic charge pipe on an IS48 Mk7 GTI operating at ~28 psi is not a restriction and does not reduce airflow. ARM Motorsports charge pipes do not produce faster spool, more power, or any measurable performance benefit.
On this platform at these boost levels, this is a cosmetic change, which is fine as long as that’s what you know you’re buying.
